Zero-Threshold Shower Planning
A curbless shower removes the raised threshold between the bathroom and shower, creating easier entry and a visually continuous floor. It can support aging in place and mobility needs, but only when the floor structure, drainage, waterproofing, shower dimensions, spray control, and tile layout are planned as one system.
The absence of a curb leaves less tolerance for construction errors. The shower floor must direct water toward the drain without creating an abrupt or unsafe transition, while the waterproofed area must extend far enough to manage water that reaches beyond the showerhead. Converting an existing bathroom may require lowering or rebuilding part of the floor rather than simply installing thinner tile.
Quick assessment: A curbless shower is most practical when the project can create sufficient floor recess, preserve structural capacity, position the drain correctly, and waterproof the complete wet zone. It may be less suitable when floor framing, plumbing, doorway elevations, or limited shower depth make water containment difficult. Permit, plumbing, structural, ventilation, and accessibility requirements should be confirmed for the property and project scope.

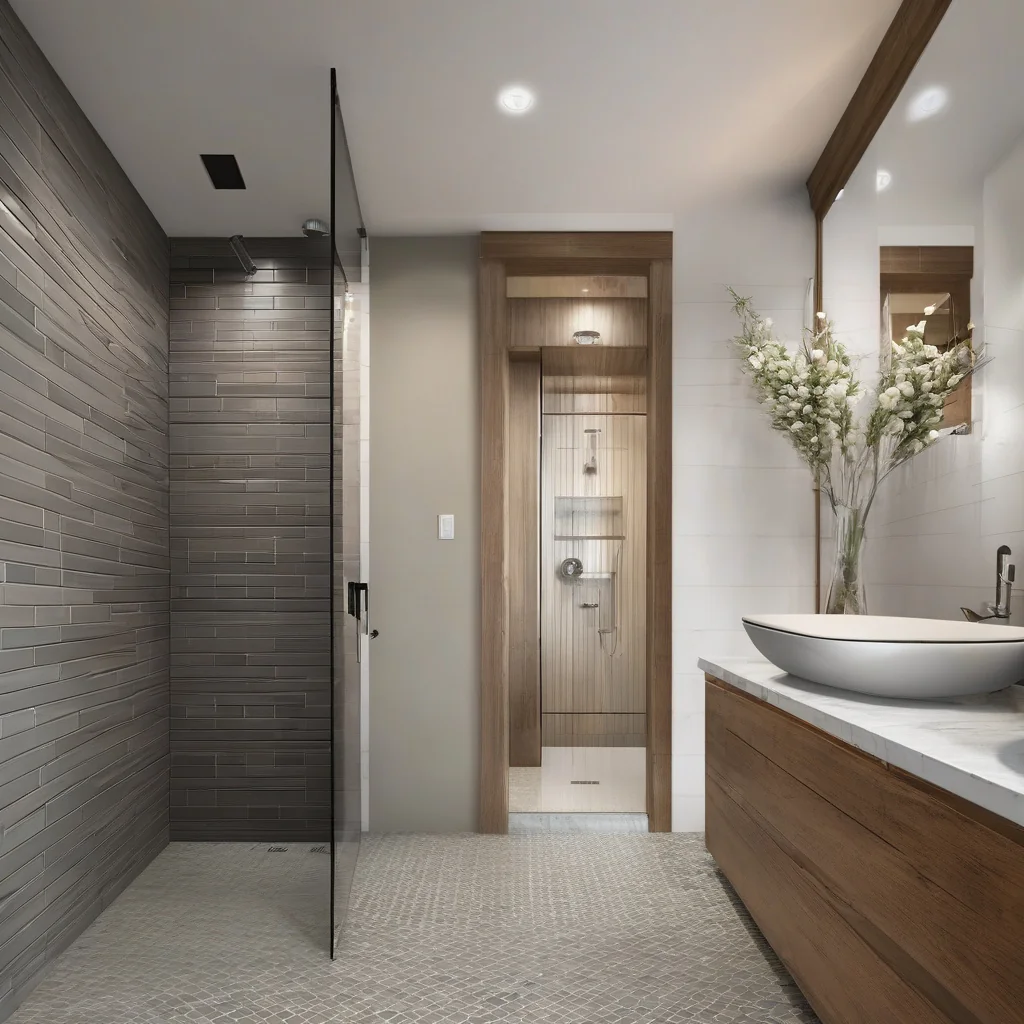

What Is a Curbless Shower?
A curbless shower—also called a zero-threshold, barrier-free, or level-entry shower—has no conventional raised curb at its entrance. The bathroom floor transitions directly into the shower floor, although the shower surface still slopes toward a drain.
The term describes the entry condition, not one specific construction method. A curbless shower may use a center drain, offset drain, linear drain, recessed mortar bed, prefabricated sloped tray, framed glass enclosure, fixed glass panel, curtain, or open wet-room layout. Each combination requires different dimensions and waterproofing details.
The design can make entry easier for people who find stepping over a curb difficult. It also reduces a visual interruption and can make a compact bathroom appear broader. However, a level-looking transition does not mean the entire bathroom floor is flat or that every curbless shower complies with formal accessibility standards.
Planning curbless shower remodeling and installation should begin before demolition with measured floor elevations, framing direction, drain location, plumbing depth, showerhead position, door clearances, and the intended waterproofing system.
Enclosed Curbless Shower
A door or glass enclosure provides stronger spray control while preserving a level entrance. Door swing, seals, hardware, and clear entry width still require coordination.

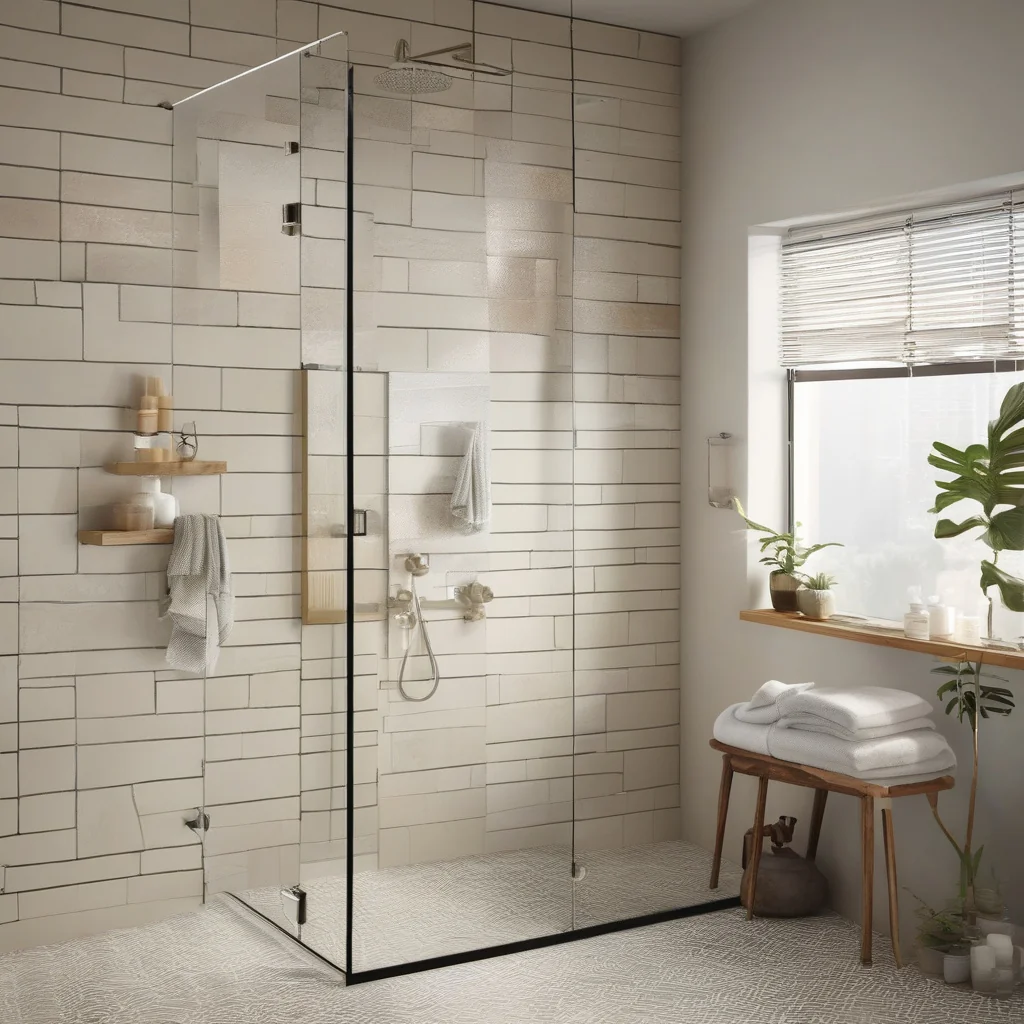

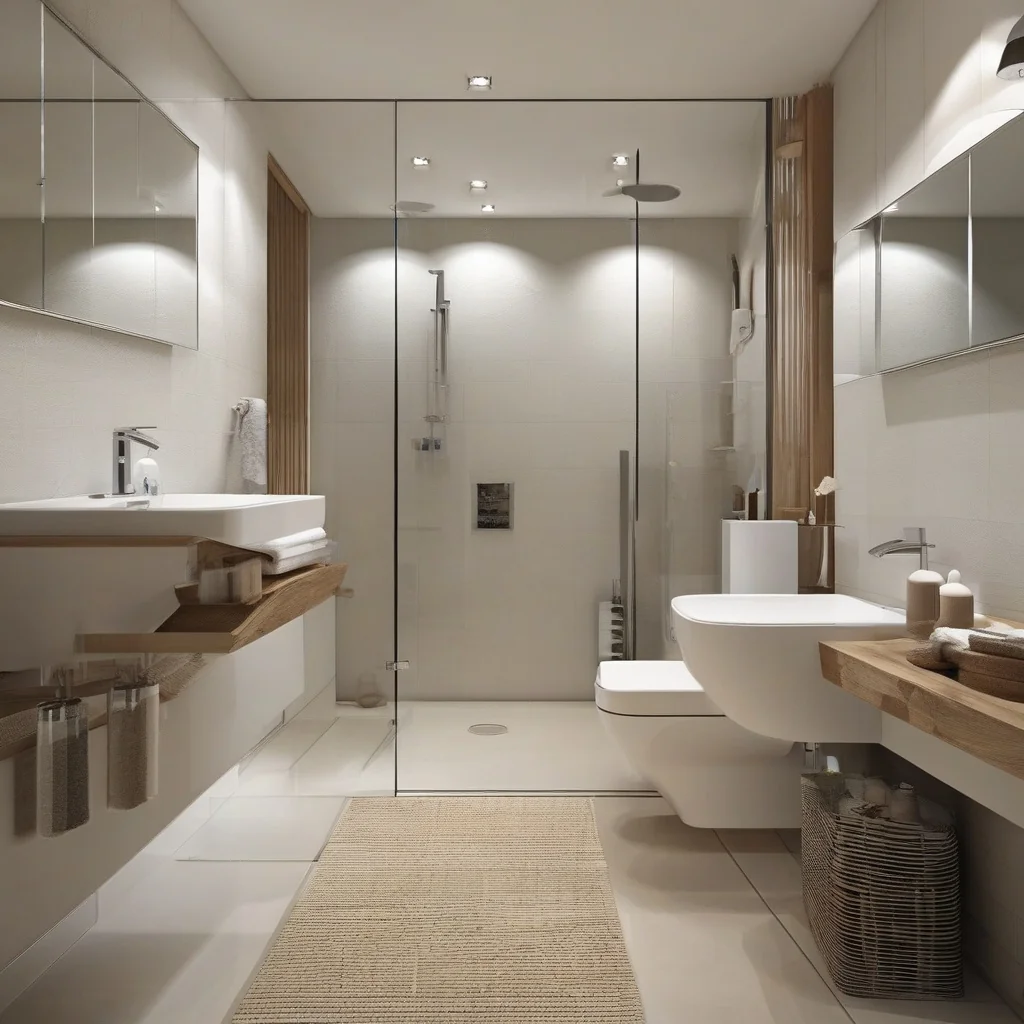

Fixed-Panel Shower
A stationary glass panel creates an open appearance with fewer moving parts. Shower depth and fixture placement determine whether water remains inside the wet zone.
Open Wet Room
A larger portion of the bathroom is treated as a wet area. This can improve access but expands waterproofing, drainage, heating, storage, and splash-control requirements.
Advantages of a Curbless Shower
The primary functional advantage is easier entry. Removing the raised curb can reduce one obstacle for users with limited balance, joint stiffness, mobility equipment, or a preference for aging-in-place features. The benefit is greatest when the rest of the route—including the bathroom door, floor space, controls, seating, and grab-bar locations—is planned with the same user in mind.
A continuous floor can make a small bathroom feel less divided. Using related tile inside and outside the shower strengthens that effect, although the shower floor may need a smaller format or different texture to accommodate slope and wet traction.
Cleaning can be easier because there is no curb with multiple corners, cap material, and glass-track transitions. A handheld shower can help rinse the surface, provided water remains within the waterproofed area and reaches the drain rather than the doorway or vanity.
The design also provides layout flexibility. A fixed panel can replace a swinging shower door, or the shower can become part of a larger wet-room arrangement. This may free circulation space, but an open plan can allow more spray, humidity, and cool air to reach the rest of the room.
Strong Candidate
The room has adequate shower depth, accessible floor construction, a practical drain route, and enough renovation scope to rebuild the wet-area assembly correctly.
Difficult Candidate
The floor cannot be recessed easily, plumbing is constrained, the shower is shallow, or the entry sits close to doors, cabinetry, wood flooring, or other water-sensitive finishes.
Disadvantages and Trade-Offs
A curbless shower usually requires more planning and floor work than a conventional shower with a curb. In an existing home, the installer may need to modify joists, rebuild the subfloor, use an engineered recess system, adjust adjacent floor elevations, or relocate the drain. Structural members should not be cut or notched merely to gain depth without an approved design.
Water containment is less forgiving. A curb provides a physical boundary when a drain slows or spray reaches the entrance. A curbless design depends more heavily on shower depth, drain capacity, slope, glass placement, showerhead direction, and the extent of waterproofing.
An open shower can feel cooler because warm air moves into the larger bathroom. A fixed panel may improve spray control while retaining openness, but its size and position can affect entry and cleaning access. A fully enclosed design may offer greater warmth at the cost of additional hardware and visual separation.
The continuous-floor appearance can also limit tile selection. Large-format tile may not conform cleanly to a multidirectional slope around a center drain. A linear drain can simplify the slope plane in some layouts, but it introduces its own drain, waterproofing, cleaning, and placement requirements.
Practical note: Removing the curb removes a backup boundary for water; the design must compensate through floor geometry, drain placement, spray control, and a wider waterproofed area.

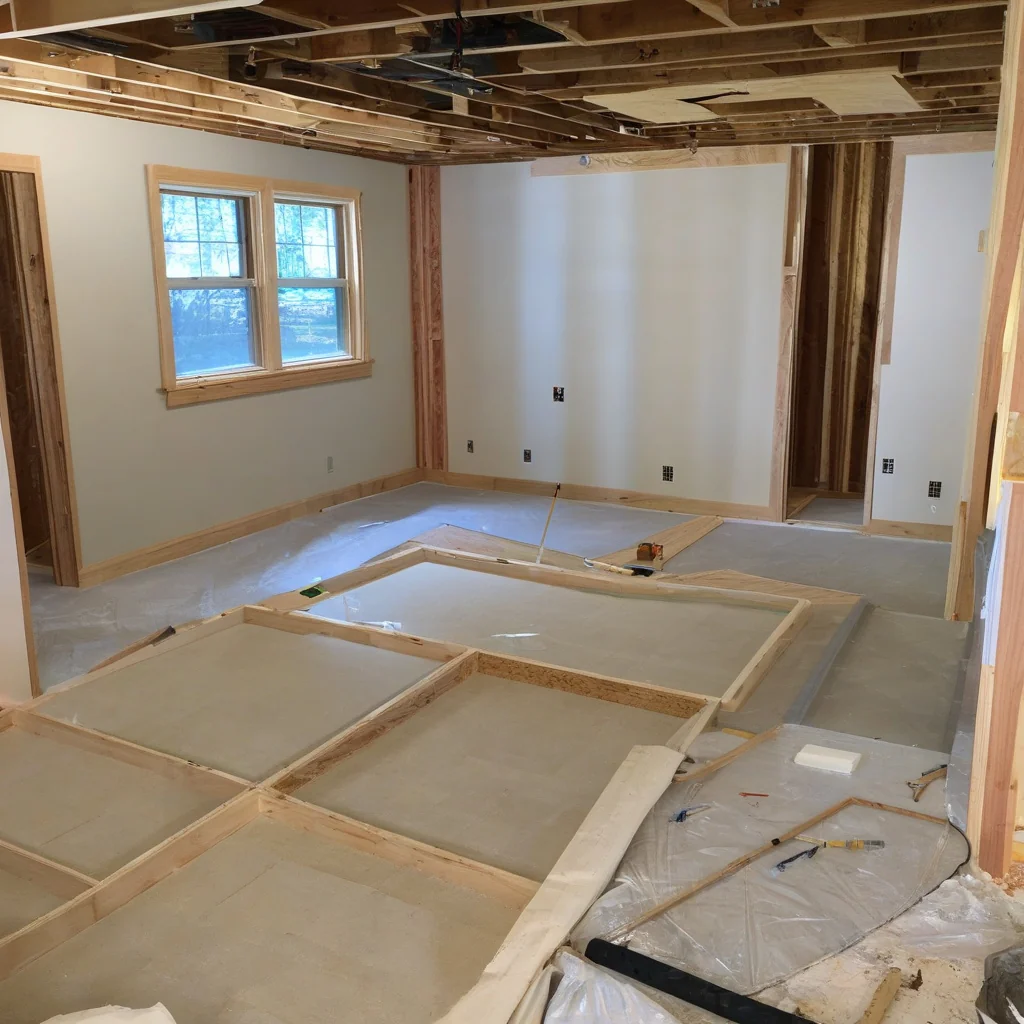

Floor Recess and Structural Planning
A curbless shower needs vertical space for the sloped assembly while keeping the entrance aligned with the bathroom floor. In slab-on-grade construction, this may involve recessing or modifying the slab and coordinating the drain below it. In wood-framed construction, it may involve a lowered subfloor, engineered framing detail, or approved low-profile shower system.
The required depth depends on shower dimensions, drain position, slope length, waterproofing system, mortar or tray thickness, tile thickness, and the elevation of adjacent flooring. A long slope toward a distant drain needs more vertical change than a short slope toward a nearby drain.
Joist direction can determine whether a drain can move without major framing work. Plumbing lines also need enough depth and route to maintain drainage while avoiding beams, ducts, wiring, and other services. Relocating the shower to the opposite side of a bathroom can therefore change the project far beyond the visible tile area.
If framing modifications are proposed, they should be designed and permitted where required. The installer should explain exactly how the lowered floor retains structural capacity and how the waterproofed assembly connects to the unchanged bathroom floor.
Measurements Needed Before Finalizing the Design
- Top of subfloor or slab relative to the adjoining finished floor
- Shower dimensions and distance from the entrance to the drain
- Joist direction, depth, bearing points, and prohibited cutting zones
- Drain pipe location, size, elevation, and route to the waste system
- Thickness of membrane, mortar or tray, tile, heat mat, and adjacent flooring
Shower Slope and Drainage Must Be Designed Together
The shower floor must slope toward the drain while remaining comfortable and stable underfoot. The applicable plumbing and accessibility criteria depend on the building type and project. Formal roll-in shower provisions can impose dimensional, slope, control, grab-bar, and seat requirements that do not automatically apply to every private single-family bathroom.
California accessibility provisions distinguish among several regulated shower configurations in covered buildings. A visually curbless residential shower should not be advertised as code-compliant accessible construction unless the requirements that apply to the property and project have actually been met.
A point drain generally requires the floor to slope from several directions. Small tile formats often conform to those planes more easily. A linear drain can allow a single-direction slope when positioned and detailed appropriately, which may support larger tile, but the grate, channel, waterproofing connection, service access, and wall relationship all need coordination.
The drain should remain accessible for cleaning. Hair strainers and removable components need enough clearance to lift out without removing fixed glass or damaging tile. Drain capacity cannot compensate for a blocked outlet, an inadequately sloped floor, or shower spray directed toward the opening.
| Drain approach | Potential advantage | Main issue to verify |
|---|---|---|
| Centered point drain | Familiar layout with drainage from several directions | Tile must accommodate multiple slope planes without excessive lippage |
| Offset point drain | May reuse an existing plumbing location | Creates unequal slope lengths and more complex tile geometry |
| Wall-side linear drain | Can support a single main slope toward one side | Wall connection, channel cleaning, waterproofing, and drain elevation |
| Entry-side linear drain | Can intercept water near the opening in suitable designs | Should not be treated as a substitute for complete shower slope and waterproofing |
| Wet-room secondary drain | May provide drainage for a larger waterproofed bathroom area | Floor elevations, trap requirements, maintenance, and permit approval |
Waterproofing Is More Important Than the Visible Tile
Tile and grout are finish materials, not the complete waterproofing system. Water can pass through joints, corners, penetrations, niches, benches, drain transitions, and small cracks. A continuous membrane must direct that water to the drain without allowing it to reach framing, drywall, insulation, or adjacent rooms.
Curbless showers often require waterproofing beyond the obvious shower footprint because water can cross the level entry. The appropriate extent depends on enclosure design, shower size, fixture position, drain location, nearby doors, and the approved membrane system. A larger wet-room design may waterproof much or all of the bathroom floor and turn the membrane up surrounding walls.
The drain and membrane must form one compatible assembly. Combining unrelated products without an approved connection detail can create a weak point beneath the tile. Changes of plane, pipe penetrations, benches, niches, and glass fasteners also require system-specific treatment.
Fasteners should not puncture critical waterproofed areas without an approved detail. Glass installers, plumbers, tile setters, and accessory installers must understand where the membrane is located before drilling begins. Review waterproofing mistakes that cause shower leaks before finalizing trade responsibilities.
Waterproofing rule: The membrane—not the grout or a surface sealer—must remain continuous from the shower floor to the drain and through every transition included in the wet-area design.
Does Curbless Automatically Mean Accessible?
No. Eliminating the threshold addresses only one potential barrier. A bathroom intended for wheelchair use or another specific mobility need may also require sufficient turning and transfer space, an appropriate shower compartment, reinforcement or grab bars, reachable controls, a handheld shower, seating, suitable door width, and clear routes around fixtures.
The rules that apply depend on the building and project. Public buildings, commercial facilities, covered multifamily housing, adaptable dwelling units, and private single-family homes may follow different accessibility provisions. A privately owned bathroom does not automatically become a regulated roll-in shower because its floor is level.
For aging in place, the design should respond to the expected user rather than reproduce one attractive reference image. A fixed glass panel that creates a narrow entrance may undermine the benefit of eliminating the curb. Controls placed beneath the showerhead can force a user to enter the spray before setting the temperature.
Wall reinforcement can allow grab bars or a folding seat to be added later without opening finished tile. The reinforcement locations should be documented with measurements and photographs before the walls are closed. Guidance on accessible bathroom design for compact spaces can help coordinate the shower with the rest of the room.
Choose Shower Tile for Wet Traction and Slope
The shower floor should be selected for wet use, cleanability, drainage geometry, and comfort underfoot. A highly polished tile may be visually continuous with the bathroom floor but less practical in an area exposed to soap and standing water.
Small mosaics create many grout joints that can improve tactile feedback and conform to multidirectional slopes. They also create more joints to clean. Large tile reduces joint count but requires a slope layout that avoids raised corners, uneven edges, and awkward cuts.
A linear drain may make large-format tile easier to use because the primary floor plane can slope in one direction. The installer still needs to account for tile thickness, drain-frame adjustment, movement joints, perimeter cuts, and the transition into the bathroom.
Slip-resistance data applies to the exact tile finish and test condition. A manufacturer may offer polished, matte, textured, and exterior versions of the same visual collection with different performance. Compare slip-resistant shower flooring options before using one tile continuously across dry and wet areas.
What Affects the Cost of a Curbless Shower?
The additional cost is driven less by the missing curb than by the work required beneath and around it. A new-construction bathroom can incorporate floor elevations and plumbing from the beginning. An existing bathroom may require demolition, framing modification, slab work, drain relocation, subfloor replacement, and a larger waterproofed area.
Moving the drain can increase the plumbing scope substantially, especially in concrete construction or where joists run across the desired pipe route. A linear drain may cost more than a basic point drain and can require precise rough-in dimensions before tile work begins.
Large-format tile, custom glass, wall-mounted fixtures, recessed niches, benches, heated floors, specialty trims, and premium finishes can further increase the budget. These features are optional; structural work, drainage, and waterproofing are not appropriate places to reduce scope merely to preserve decorative selections.
- Demolition and condition of the existing subfloor, slab, walls, and framing
- Floor recess method, structural engineering, and adjacent elevation changes
- Drain location, plumbing route, pipe condition, and concrete cutting
- Waterproofing area, membrane system, niches, benches, and penetrations
- Tile format, setting materials, glass, fixtures, ventilation, and finish complexity
There is no reliable universal price range because two bathrooms of the same size can require very different structural and plumbing work. Review plumbing relocation costs for new shower layouts and request proposals that separate confirmed work from concealed-condition allowances.
Permits, Plumbing, and California Code Considerations
A curbless shower remodel commonly affects plumbing, waterproofing, wall finishes, and sometimes structural framing or electrical work. Permit requirements depend on the jurisdiction and exact scope. Work in the City of Los Angeles is administered separately from projects in unincorporated Los Angeles County or another incorporated city.
The applicable California Residential, Building, Plumbing, Mechanical, Electrical, Energy, and Green Building provisions depend on the permit date, building type, and project scope. Local amendments and inspection procedures must also be considered.
The plumbing review can address the shower receptor, drain, trap, waste piping, valves, water conservation, and approved materials. Structural review may be needed when framing or the slab is altered. Electrical requirements apply to lighting, receptacles, heated floors, ventilation, and equipment in bathroom locations.
Bathroom ventilation should also be included in the permit and energy scope where applicable. The fan, airflow, controls, duct route, exterior termination, sound level, and maintenance access should be coordinated before ceilings and walls are closed.
Questions to Ask Before Signing the Contract
- Which building department has jurisdiction over the property?
- Who is responsible for permits, inspections, and correction notices?
- How will the floor be recessed without weakening framing or the slab?
- Which compatible waterproofing and drain system will be installed?
- How far will waterproofing extend beyond the shower entrance?
- What happens if damaged framing or plumbing is uncovered?
Common Curbless Shower Installation Mistakes
The first mistake is deciding on a zero-threshold design after tile and fixtures have already been ordered. Floor depth, drain type, tile thickness, and glass placement are interdependent. Late changes can create an unintended ramp, raised bathroom floor, narrow doorway transition, or incompatible drain elevation.
Another error is cutting framing to lower the shower without an approved structural plan. The finished floor may look correct while the joists beneath it have lost capacity. Structural limits should be identified before drain and tray locations are fixed.
Waterproofing only the shower rectangle is risky when the entrance is open and level. Splash, cleaning water, a partially blocked drain, or a handheld shower can carry water beyond the glass. Adjacent flooring and wall bases should be included according to the wet-area design.
Poor glass placement is also common. A panel that is too short or too far from the showerhead may allow regular overspray. A panel that is too long can narrow entry and make controls, benches, or cleaning difficult to reach.
Finally, surface sealers are sometimes presented as a remedy for failed grout or membrane details. Sealers can affect absorption or staining on compatible materials, but they do not create the concealed waterproof assembly required beneath the tile.
Maintenance After Installation
Keep the drain strainer and channel clear of hair, soap residue, and debris. A slow drain is more noticeable in a curbless shower because water has no raised curb to delay its movement into the bathroom.
Clean tile, grout, glass, metal, and sealant with products approved for those materials. Abrasive tools and incompatible chemicals can damage grout, coatings, stone, drain finishes, and flexible joints.
Inspect changes of plane, penetrations, glass connections, drain edges, and perimeter sealant for separation or damage. Grout cracking should be assessed rather than repeatedly covered if it appears alongside movement, hollow tile, or moisture staining.
Ventilation should run long enough to manage moisture according to the installed controls and project design. Persistent condensation, musty odors, water beyond the expected wet area, or staining in adjacent rooms warrants investigation rather than more surface caulk.
When Professional Design or Structural Review Is Necessary
Homeowners can document bathroom dimensions, floor transitions, showerhead location, preferred glass arrangement, and accessibility goals. They can also note where water travels in the existing shower and which daily movements are difficult.
Professional review is necessary when the floor must be recessed, framing or concrete will be modified, the drain moves, accessibility compliance is required, or the waterproofing extends into a wet-room design. These decisions affect concealed construction that cannot be verified from a finished reference image.
Do not proceed when a contractor cannot explain the slope, structural recess, membrane-to-drain connection, waterproofing boundary, water-testing procedure, and inspection sequence. The visual finish should be approved only after those technical details are documented.
- Curbless showers improve entry and visual continuity but require additional technical planning.
- Coordinate floor recess, drain elevation, slope, glass, and waterproofing before demolition.
- Do not assume that every zero-threshold shower meets formal accessibility requirements.
- Professional review is needed for framing, slab work, drain relocation, and wet-room waterproofing.
- Prioritize the concealed drainage and waterproofing system over decorative upgrades.
Frequently Asked Questions
Is a curbless shower worth installing?
It can be worthwhile when easier entry, aging-in-place planning, or a more open bathroom layout justifies the additional floor, drain, and waterproofing work. The design is most successful when the room has enough shower depth and the structure can accommodate a level entrance without an awkward transition. It may offer poor value when extensive framing or slab modification is needed but accessibility and visual continuity are not project priorities.
Will water escape from a curbless shower?
Water can escape when the shower is too shallow, the showerhead points toward the entrance, the glass panel is undersized, the floor slope is incorrect, or the drain becomes restricted. A well-planned design uses adequate depth, suitable fixture placement, effective drainage, and waterproofing beyond the open threshold. A level entry should not rely on one narrow drain at the doorway as the only protection against overspray.
Does a curbless shower need a linear drain?
No. Point and linear drains can both be used when the floor is designed correctly. A point drain commonly requires slope from several directions and often works well with smaller tile. A linear drain can support a single primary slope and larger tile in some layouts. The best choice depends on floor depth, plumbing location, shower dimensions, waterproofing system, cleaning access, tile plan, and product requirements.
Can a curbless shower be installed on a concrete slab?
It may be possible, but the slab and plumbing must be evaluated before demolition. Creating the recess can involve concrete cutting, drain relocation, excavation, reinforcing considerations, and repair of the slab and moisture-control layers. Existing post-tensioned construction or concealed utilities require particular caution. The work should not begin until the floor system and approved method for achieving the required drain and finished elevations are known.
Can floor joists be cut to create a curbless shower?
Joists should not be cut, notched, drilled, or reduced merely to make space for a shower without verifying the applicable structural limits and approved design. Some projects use engineered recess systems, altered framing layouts, or other designed solutions. Joist type, span, loads, bearing, holes, notches, drain location, and surrounding construction all matter. Structural modifications may require engineering, permits, and inspection.
Is every curbless shower wheelchair accessible?
No. Removing the curb addresses only the threshold. Wheelchair access can also depend on entry width, shower dimensions, turning or transfer space, controls, handheld shower equipment, seat, reinforcement or grab bars, door clearances, floor slope, and the route through the bathroom. Formal accessibility requirements apply according to building and project type. A private design should not be called code-compliant accessible without checking the provisions that govern it.
How far should waterproofing extend outside a curbless shower?
There is no universal distance suitable for every layout. The waterproofed boundary should follow the approved system, shower dimensions, enclosure, drain location, spray direction, nearby walls, and expected water exposure. Open showers and wet rooms generally require broader protection than enclosed showers. The drawings should show the membrane’s floor and wall limits, transitions, penetrations, and connection to the drain before tile installation begins.
Does a curbless shower cost more than a conventional shower?
It often costs more in an existing bathroom because the floor may need structural recessing, slab work, drain relocation, broader waterproofing, precise grading, and custom glass. The difference can be smaller in new construction where elevations and plumbing are designed from the beginning. Tile and fixture prices alone do not explain the cost; proposals should identify structural, plumbing, waterproofing, permit, and concealed-condition work separately.
