Projection Window Design
Bay and bow windows can bring more daylight, wider exterior views, architectural depth, and a usable interior ledge into living rooms, dining areas, bedrooms, and breakfast spaces.
A bay window usually has three distinct sections with a more angular projection, while a bow window uses four or more units to create a softer curve. The best choice depends on the wall width, exterior architecture, desired seating depth, operating windows, structural support, and available yard or setback space.
Quick answer: Choose a bay window when the room needs a deeper central ledge, a defined seating nook, or a more geometric exterior feature. Choose a bow window when the priority is a broad curved view, balanced daylight, and a softer transition across a wider wall. Both designs require careful framing, support, flashing, roofing, insulation, and exterior finish integration. Confirm the complete opening and projection before ordering custom units.
What Is the Difference Between Bay and Bow Windows?
A traditional bay window combines one larger central window with two angled side units. The center may be fixed for an uninterrupted view, while the side windows can be casements, double-hung units, or another operable style. The sharper angles create a defined interior projection that can support a bench or broad sill.
A bow window generally combines four, five, or more similarly sized window units in a gentle curve. Because the individual sections are narrower and distributed across the opening, a bow design creates a panoramic effect rather than one dominant center pane.
Neither style is universally better. A narrow façade may suit a compact three-panel bay, while a long living-room wall may support a broader bow. Planning bay and bow window installation should account for both the interior use and the exterior composition of the home.
Three-panel bay
Best for a strong central view, deeper interior projection, built-in seating, and a more geometric architectural statement.
Four- or five-panel bow
Best for wider views, softer exterior lines, balanced light, and a curved arrangement across a broad wall.
Custom projection window
Best when wall dimensions, architectural details, operating needs, or structural conditions do not suit a standard configuration.
Choose a Bay Window for Depth and Defined Seating
A bay window typically projects farther at its center than a bow window of similar width. That depth can create enough room for a built-in bench, reading seat, breakfast ledge, or deeper display surface.
The central panel provides a strong outward view, while the angled side windows can capture light from more than one direction. Operable side units can also support cross-ventilation when their configuration and exterior conditions allow.
Bay windows work well in rooms that benefit from a clear focal point. A dining nook can align a table with the projection, a bedroom can gain a quiet seating area, and a living room can use the window as the visual anchor for furniture placement.
The angular exterior profile should relate to the home’s architecture. Strongly modern, traditional, cottage, Tudor-inspired, and transitional homes may each need different roof caps, trim widths, mullion patterns, and frame colors.
A bay window works well when
The room needs a deeper ledge, one dominant center view, a defined furniture nook, or a stronger architectural projection.
A bow window may work better when
The wall is wide, the exterior benefits from a softer curve, and the priority is panoramic light rather than maximum interior depth.
Choose a Bow Window for Wider Views and Softer Lines
A bow window distributes several narrow units across a curved projection. This arrangement can create a wider field of view and bring daylight from multiple angles without emphasizing one large center pane.
The softer curve often suits larger living rooms, formal dining rooms, and façades where a sharp three-sided projection would appear too heavy. A bow window can also create a more continuous interior ledge for plants, objects, or shallow seating.
Because a bow contains more individual window sections, it can introduce more vertical frame lines. The spacing, frame profile, grid pattern, and operating units should be reviewed together so the view does not become unnecessarily fragmented.
Homeowners prioritizing scenery can compare the design with other windows that maximize exterior views before deciding whether a curved projection or a larger flat opening provides the stronger result.
Practical note: A bow window does not automatically provide more usable floor depth than a bay. It often creates a broader but shallower projection, depending on the number of units, angle, and wall width.
Turn the Interior Projection Into Useful Space
The interior ledge is one of the main reasons homeowners choose a bay or bow window. It can remain a simple finished sill, become a built-in seat, support plants, or provide a shallow display area.
A window seat should be designed around actual sitting depth, headroom, cushion thickness, nearby furniture, and the height of the glass. A projection that looks deep on an exterior rendering may not create a comfortable seat after framing, insulation, trim, and cushions are included.
Storage drawers or lift-up compartments can be integrated beneath the bench, but they require clear access and should not interfere with structural support, heating equipment, outlets, or window hardware.
Plant shelves benefit from daylight, but direct afternoon sun can overheat leaves and containers. Water from pots should not damage wood trim, painted surfaces, seat cushions, or concealed framing.
Plan Bay and Bow Windows Around Furniture
A projection window changes the usable perimeter of the room. It may create a natural location for a dining table, pair of chairs, reading bench, desk, or small sofa, but the furniture layout should be tested before the opening is enlarged.
In a living room, placing the main seating directly against the new window can block views and access to operating sashes. A window bench may reduce the need for separate chairs, although it should not become an uncomfortable decorative platform that is rarely used.
Dining areas need enough clearance around the table and chairs. The curved or angled window geometry should not force furniture into narrow corners or leave difficult-to-clean gaps.
Where the projection is intended for a desk, consider glare, monitor orientation, outlets, window operation, and the amount of direct sun reaching the work surface throughout the day.
| Design goal | Bay window approach | Bow window approach |
|---|---|---|
| Built-in seating | Deeper central bench with angular side returns | Wider curved ledge with shallower seating depth |
| Panoramic view | Strong center view with angled side perspectives | Broad continuous view across multiple units |
| Natural ventilation | Operable side units around a fixed center panel | Selected operable units distributed across the curve |
| Architectural emphasis | More pronounced, geometric exterior projection | Softer and more traditional curved exterior form |
| Plant display | Deep central shelf with defined corners | Longer curved shelf with balanced daylight |
| Compact wall opening | Often easier to configure with three sections | May need greater width for a balanced curve |
Coordinate the Exterior With the Home
A projection window changes the façade more visibly than an ordinary flat replacement. Its width, depth, roof form, underside, trim, grids, and frame color should relate to nearby windows, doors, eaves, siding, and architectural lines.
A compact bay may suit a bungalow or cottage when its proportions remain restrained. A wide bow may complement a traditional façade but appear inconsistent on a highly geometric modern elevation unless the detailing is simplified.
The roof over the projection may be a small shed form, a hip-style cap, or another system appropriate to the design. Its slope, flashing, drainage, and relationship to existing eaves need to be resolved as part of the installation.
Homeowners comparing architectural impact can review window styles that improve curb appeal before replacing a flat opening with a feature that changes the full elevation.

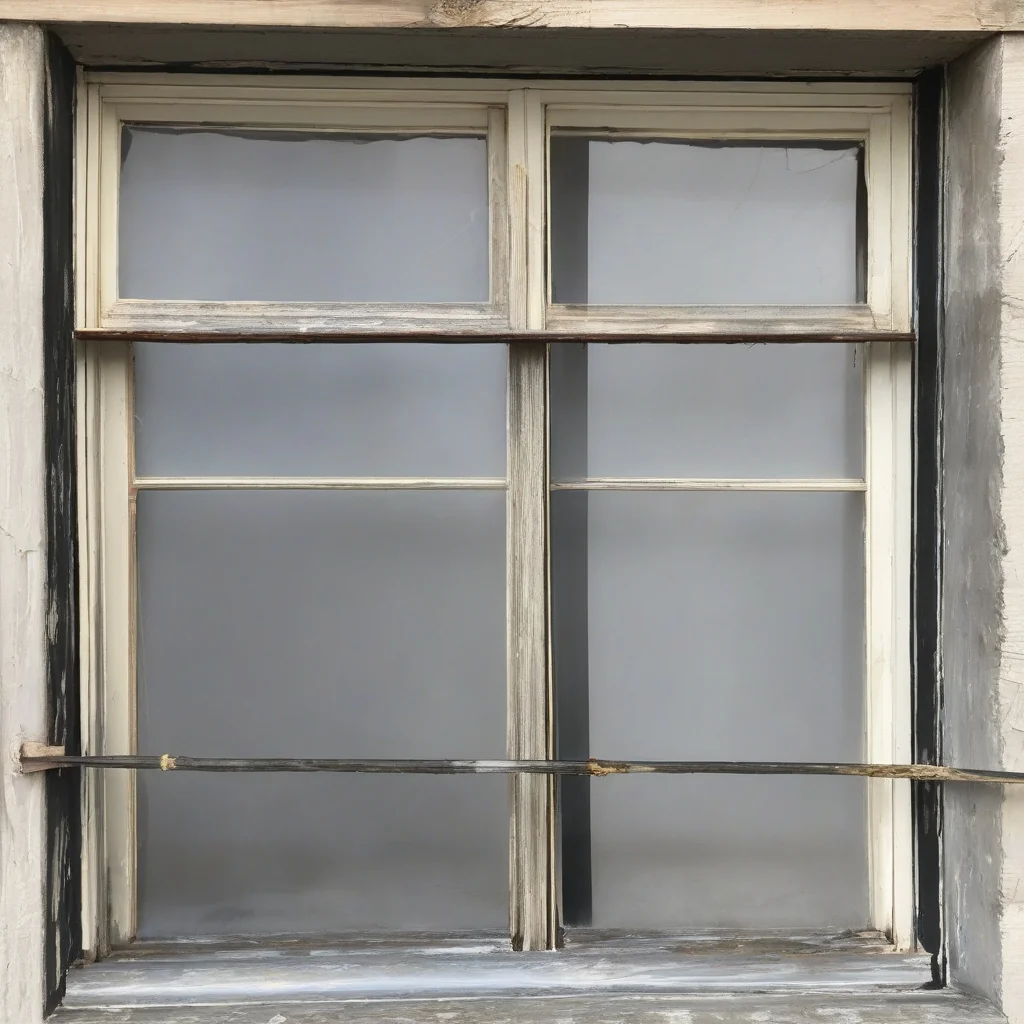

Custom and Standard Projection Windows
Some manufacturers offer common bay and bow configurations, but the complete unit still needs to fit the actual opening, wall thickness, angle, support system, and finish conditions. A nominal size should not be assumed compatible with an existing wall.
Custom units may provide greater flexibility in center-panel width, number of bow sections, operating style, projection depth, glass specifications, frame material, and interior finish. They may also require longer manufacturing time and more detailed field measurements.
Standard configurations can simplify product selection when the opening and architecture already align with available dimensions. The installation scope may still be custom because the surrounding framing, stucco, siding, drywall, trim, roof, and support conditions differ from property to property.
Review custom windows for projecting openings before deciding that a factory configuration will reduce the complete project cost or design effort.

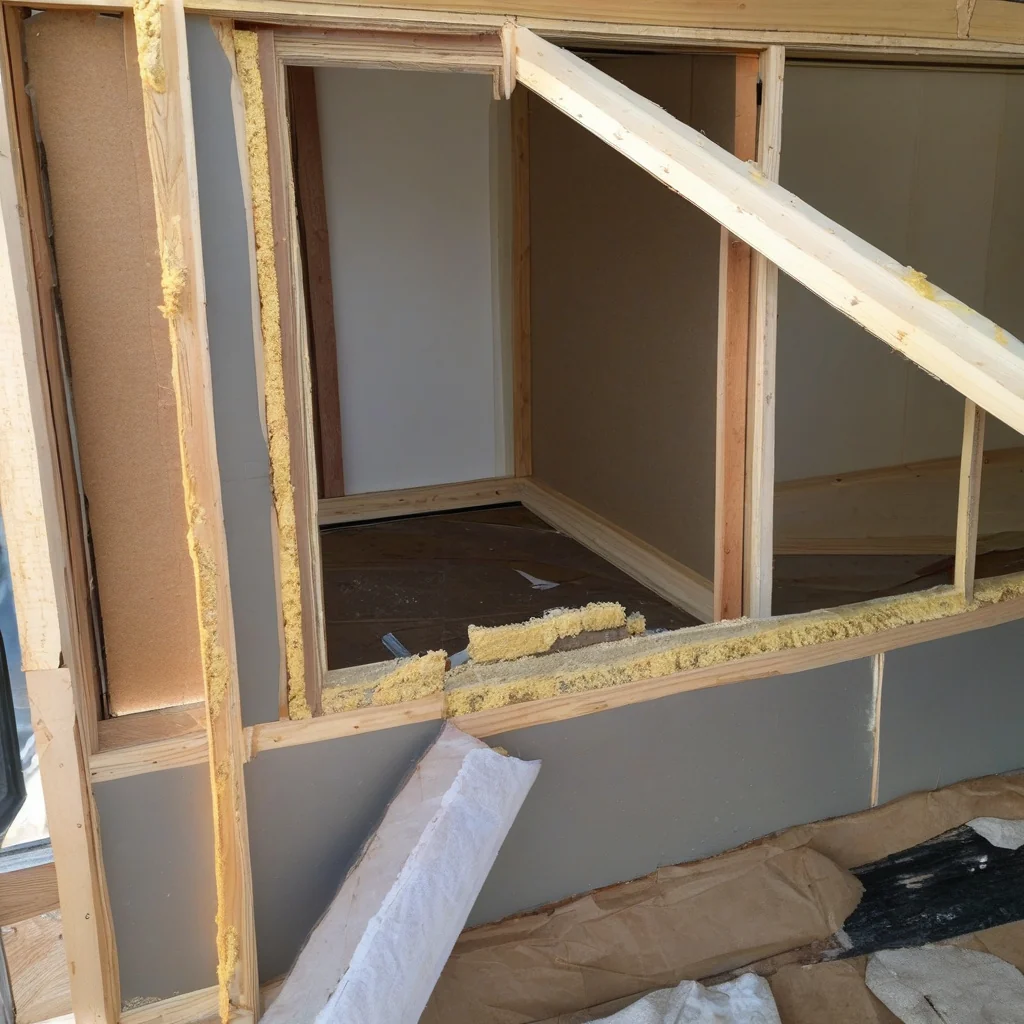

Structural Support Is Part of the Design
Bay and bow windows project beyond the supporting wall, so their load must be transferred safely back into the building. The support approach depends on the unit, projection, wall construction, opening width, manufacturer requirements, and existing structural conditions.
Some assemblies use support cables or rods connected to framing above. Others rely on brackets, a framed base, or another engineered support method. Decorative corbels should not be assumed to provide structural support unless they are designed and installed for that purpose.
Enlarging an existing flat opening may require a new header, altered wall framing, or structural review. Exterior stucco, siding, interior drywall, wiring, pipes, and other concealed conditions can affect the feasible opening size.
The project should not proceed from exterior dimensions alone. The wall must be investigated sufficiently to understand what carries loads above the opening and what components will be disturbed.
Practical note: A projection window is not simply a larger replacement sash. It is a three-dimensional assembly that affects framing, support, weather protection, insulation, and interior finish work.

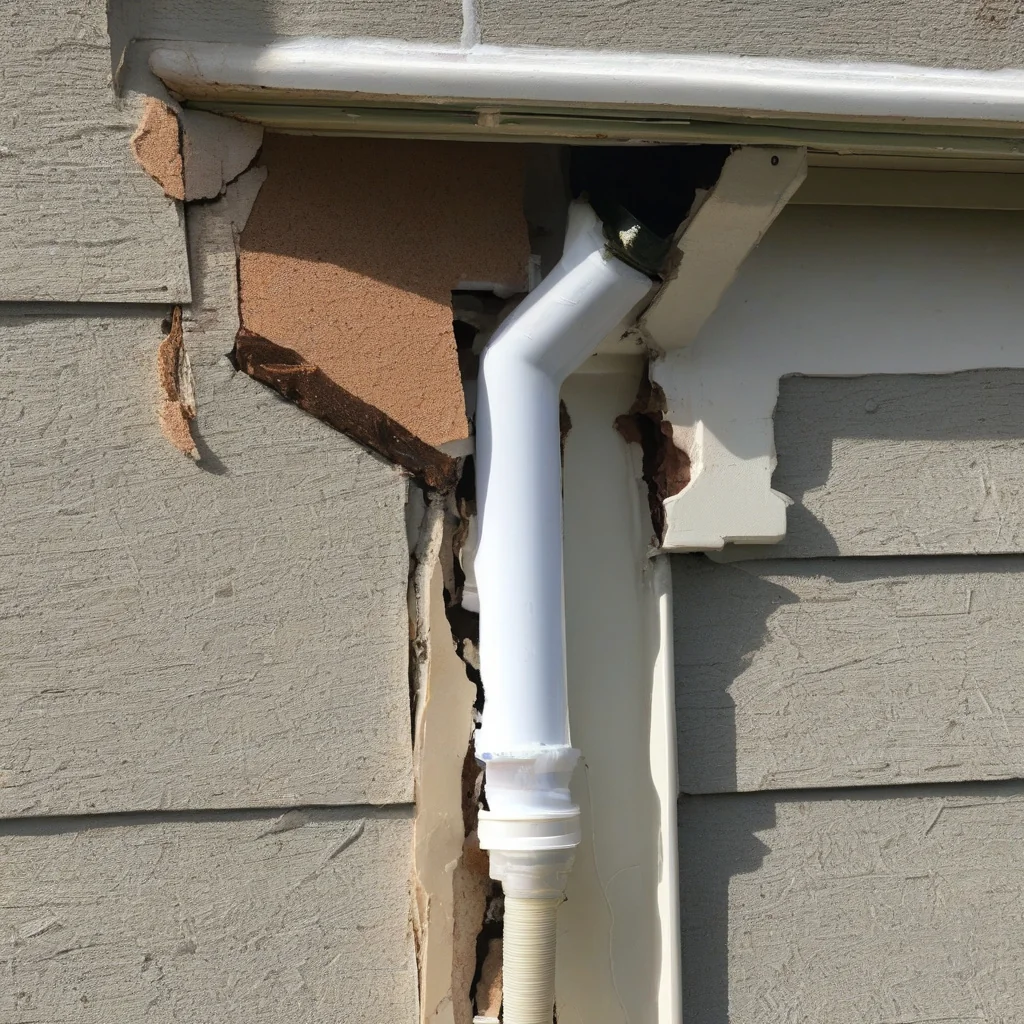

Prevent Drafts and Leaks Around the Projection
The additional corners, joints, roof edges, sill, and underside of a bay or bow window create more weather-exposed details than a flat window. Water management should direct rain over and away from the assembly rather than relying only on visible caulk joints.
Flashing must coordinate with the surrounding exterior wall, roof cap, head, side jambs, sill, and any transitions to stucco, siding, trim, or masonry. The exact sequence depends on the wall and window system.
Insulation and air sealing around the rough opening should limit drafts without distorting the frame or blocking drainage paths. The interior seat board, head board, and underside also need insulation appropriate to the approved assembly.
Water staining, peeling paint, softened trim, persistent drafts, or condensation concentrated around the projection should be investigated rather than covered with additional sealant. The source may involve flashing, roofing, frame joints, glazing, insulation, or the surrounding wall.
What Affects the Cost of a Bay or Bow Window?
The cost depends on the complete construction scope rather than the number of glass panels alone. Replacing an existing projection with a similar unit differs from creating a new opening in a flat exterior wall.
- Bay or bow configuration, overall width, projection depth, and number of units
- Frame material, glass package, grids, hardware, and interior finish
- Standard factory configuration versus fully custom manufacturing
- Structural framing, headers, support brackets, cables, or base construction
- Roof cap, flashing, insulation, air sealing, and exterior drainage details
- Stucco, siding, trim, drywall, paint, flooring, and finish restoration
- Upper-story access, landscaping protection, and difficult material delivery
- Electrical, HVAC, furniture, or built-in seating changes around the opening
A lower-priced unit may exclude structural work, roofing, exterior finish repair, interior trim, painting, or built-in seating. Proposals should describe the complete assembly and responsibility for every transition around the opening.

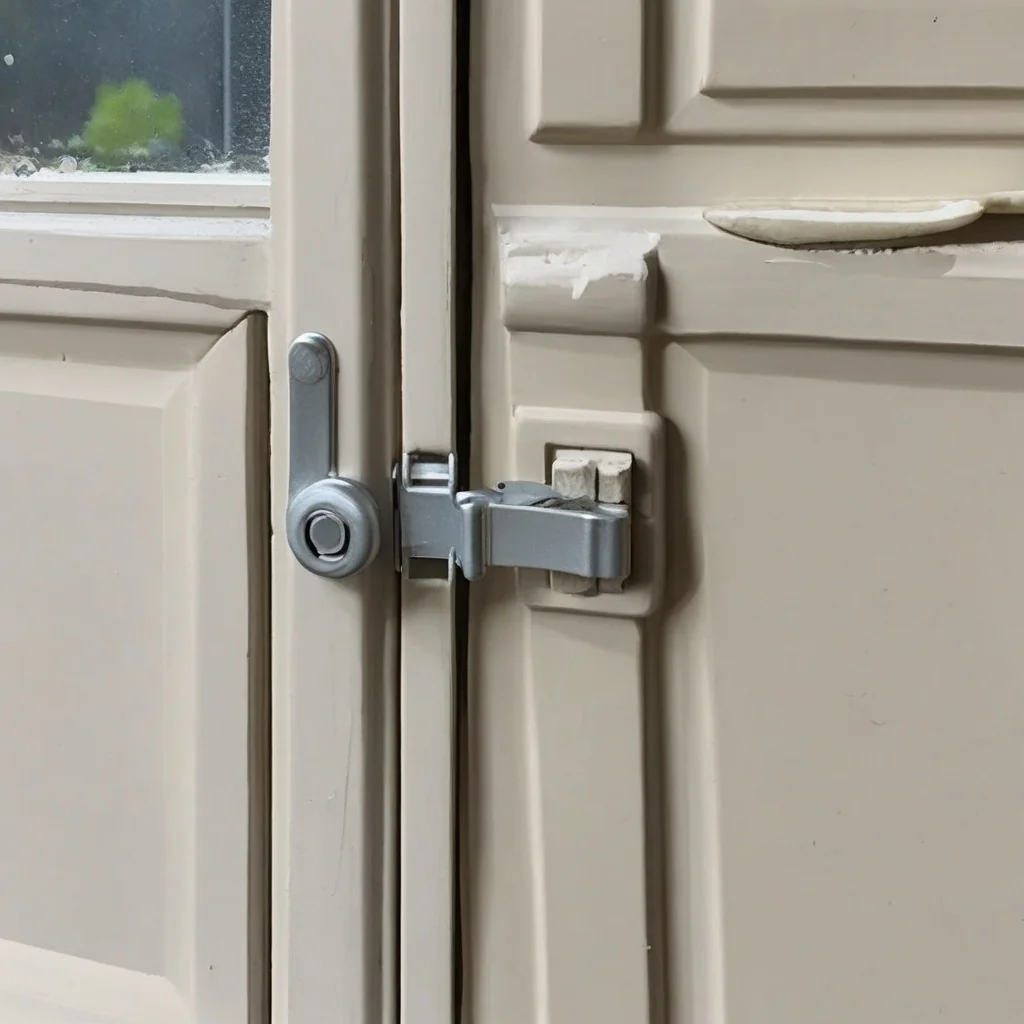

Match the Window With Doors, Trim, and Existing Openings
A new projection window should feel related to the home rather than added as an isolated feature. Frame color, grid pattern, glass tint, interior casing, sill profile, and exterior trim should be compared with nearby windows and doors.
Exact matching may not be possible when existing products are discontinued or heavily weathered. In that case, the design can either choose the closest compatible appearance or make the new projection intentionally distinct while repeating another architectural element.
Interior trim should also coordinate with baseboards, door casings, flooring, wall color, and built-ins. An oversized casing can reduce the apparent glass area, while trim that is too narrow may look unfinished beside a substantial projection.
Guidance on matching bay windows with doors and trim can help organize these details before the product and finish package is finalized.
Common Bay and Bow Window Design Mistakes
The first mistake is selecting a projection from an interior photograph without checking the exterior elevation. A feature that creates a pleasant seat indoors may appear oversized, poorly aligned, or visually unrelated from the street.
Another error is assuming the ledge will automatically function as comfortable seating. The finished depth, height, glass location, cushions, and nearby furniture should be tested before framing and product selection.
Homeowners also maximize glass without planning glare, privacy, solar exposure, or furniture fading. A broad west-facing projection may create substantial afternoon light and heat unless glazing, shading, and room use are considered.
Poorly coordinated operating windows can be difficult to reach from a deep bench or behind furniture. Handles, screens, locks, and cleaning access should be reviewed from inside the completed layout.
Finally, a project may focus on the window unit while leaving roof, support, flashing, insulation, exterior finish, and interior restoration vaguely defined. These surrounding details determine whether the installation remains durable and visually complete.
What to confirm before ordering
- Measure the wall, exterior projection area, interior furniture, and finished seat depth.
- Review the design from both interior and street-facing viewpoints.
- Confirm structural support, header requirements, flashing, roofing, and insulation.
- Identify which units open and whether handles remain accessible.
- Coordinate frame, grids, trim, glass, doors, and nearby windows.
When Professional Planning Is Necessary
A homeowner can compare bay and bow shapes, furniture layouts, frame colors, and interior finish ideas. Creating or enlarging a projection opening requires professional evaluation of the structure, exterior wall, support, weather protection, and applicable approvals.
Professional review is especially important when the opening is widened, a header changes, the window is installed above the first floor, the wall contains masonry or structural bracing, or the projection conflicts with property constraints.
The project team should verify product dimensions, structural support, rough opening, exterior clearance, drainage, flashing, roofing, glass, insulation, and finish transitions before manufacturing begins. Custom windows can be difficult or impossible to alter after delivery.
Stop work if demolition reveals water damage, deteriorated framing, unrecorded structural changes, or concealed utilities that differ from the approved plan. These conditions should be evaluated before the new assembly closes the wall.
- Bay windows create deeper angular projections and defined seating areas.
- Bow windows provide wider curved views across several window units.
- Plan structural support, flashing, roofing, and insulation before ordering.
- Do not size a window seat from exterior projection depth alone.
- Compare the new feature with nearby windows, doors, and trim.
Frequently Asked Questions
What is the main difference between a bay and bow window?
A bay window typically uses three sections and forms a more angular projection, often with one larger center panel and two angled side windows. A bow window usually combines four or more narrower units in a gentle curve. Bays generally create more defined interior depth, while bows emphasize broad views and a softer exterior profile.
Which adds more interior space, a bay or bow window?
A bay window often creates a deeper central projection and may provide more usable seat depth within a narrower opening. A bow window usually creates a wider but softer projection across several units. The actual interior gain depends on wall width, projection angle, frame thickness, insulation, trim, support, and the finished seat-board dimensions.
Can a bay window include a built-in seat?
Yes, when the finished projection provides suitable depth, height, headroom, and structural support. The design should include cushion thickness, nearby furniture, glass height, access to operating windows, and any storage below. Exterior projection depth alone does not determine whether the completed ledge will be comfortable enough for regular seating.
Do bay and bow windows require structural support?
Yes. Projection windows extend beyond the supporting wall and need an approved method of transferring their load back into the building. The design may use cables, brackets, framed support, or another project-specific system. Opening width, wall construction, unit weight, projection depth, and manufacturer requirements determine the appropriate approach.
Can a flat window be replaced with a bay or bow window?
It may be possible when the wall, opening, structure, exterior projection area, and property conditions allow it. The project can involve new framing, a header, structural support, flashing, roof construction, insulation, exterior finish repair, and interior trim. The complete scope should be evaluated before a custom projection window is ordered.
Are bay and bow windows energy efficient?
Their performance depends on the glass, frames, operating units, insulated seat and head boards, installation, air sealing, flashing, and solar exposure. A well-designed unit can provide suitable performance, but the larger glass area and multiple joints require careful product and installation choices. Compare complete-window ratings and the finished assembly rather than assuming the shape alone determines efficiency.
Which rooms are best for bay or bow windows?
Living rooms, dining areas, breakfast spaces, bedrooms, and selected home offices can benefit from projection windows. The best room has an exterior wall with a useful view, enough interior width for furniture, and sufficient exterior clearance. Consider glare, privacy, sun exposure, circulation, and how occupants will use the ledge or seat.
What should a bay or bow window quote include?
The quote should identify the exact window configuration, glass, frames, operating units, grids, interior finish, structural support, rough-opening work, roofing, flashing, insulation, exterior restoration, interior trim, painting, disposal, access, and exclusions. It should also state who verifies final dimensions and who is responsible for concealed damage or framing changes discovered during removal.
