High-Performance Home Expansion
An energy-efficient home addition begins with a compact layout, a continuous insulated and air-sealed enclosure, carefully placed windows, exterior shading, efficient HVAC, controlled ventilation, and roofing suited to Southern California heat.
Adding premium equipment cannot compensate for gaps around framing, oversized west-facing glass, disconnected ductwork, or an addition that performs differently from the original house. The new room and the connection to the existing building must be designed as one energy and comfort system.
Best design strategy: Reduce heating and cooling demand before selecting mechanical equipment. Orient and shade windows according to actual sun exposure, keep insulation continuous at roofs and wall transitions, and verify air sealing before finishes conceal the work. Use project-specific energy calculations to coordinate glazing, roofing, ventilation, lighting, and HVAC. California requirements vary with the addition, climate zone, permit date, and chosen compliance method.
Which Features Make a Home Addition More Energy-Efficient?
The most effective features are not isolated products. They form a coordinated building enclosure that controls heat, air, and moisture while supplying daylight and fresh air without unnecessary cooling or heating demand.
Start with the addition’s size and shape. A compact room generally has less exterior wall and roof area than a complicated footprint enclosing the same usable floor space. Fewer corners, roof intersections, and offsets also reduce locations where insulation and air sealing can become discontinuous.
Next, coordinate insulation, air barriers, windows, doors, roofing, HVAC, ventilation, and lighting. The wall separating the existing house from the addition may stop functioning as an exterior boundary, while the new perimeter becomes part of the conditioned enclosure. That transition deserves detailed plans rather than a generic note to match existing construction.
Planning energy-efficient home addition construction from the first layout allows the architect, energy consultant, structural engineer, and trades to resolve performance requirements before framing begins.
Efficient Enclosure
Continuous insulation and air sealing reduce uncontrolled heat transfer and drafts at walls, roofs, floors, windows, and the connection to the existing home.
Solar Control
Window orientation, glazing, overhangs, exterior shades, and roof reflectance manage daylight without allowing excessive summer heat into the room.
Right-Sized Systems
HVAC, ventilation, lighting, and controls should be selected after the enclosure and loads are defined rather than copied from the original house.

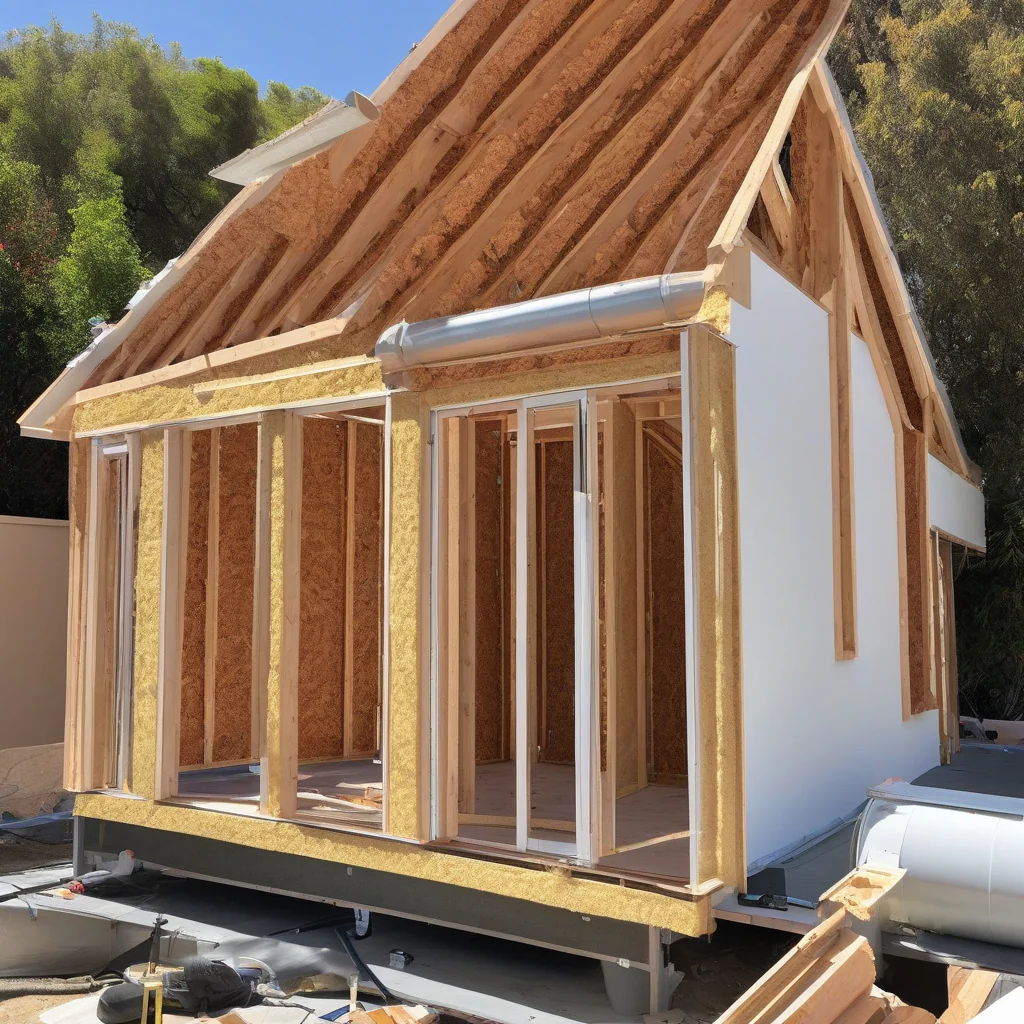

Build a Continuous Insulation and Air-Sealing Layer
Insulation performs as intended only when it is installed continuously and remains in contact with the enclosure layer it is meant to protect. Gaps, compression, displaced batts, uninsulated headers, open chases, and poorly detailed roof-to-wall intersections can create local hot or cold areas even when the nominal insulation value appears adequate on the plans.
Air sealing addresses a different part of performance. Uncontrolled airflow can carry heat, moisture, dust, and outdoor pollutants through joints around framing, pipes, wiring, recessed components, windows, doors, and attic access points. Insulation alone does not reliably stop those leaks.
The connection between old and new construction is especially vulnerable. Existing stucco, siding, roof framing, foundations, and interior finishes may need to be opened so air, water, and thermal-control layers can connect properly. Simply butting new materials against the existing wall can leave hidden discontinuities.
Insulation type should be selected by assembly and installation conditions rather than by one product’s advertised value. Fibrous insulation, rigid boards, spray-applied products, and insulated sheathing each have different detailing, moisture, fire, access, and quality-control requirements.
More Insulation Can Help
Additional thermal resistance may reduce heat flow when the assembly has space, compatible materials, and careful installation without major gaps or thermal bridges.
Better Detailing May Matter More
A moderate assembly installed continuously can outperform a higher-rated design interrupted at framing, penetrations, roof edges, or the connection to the original house.

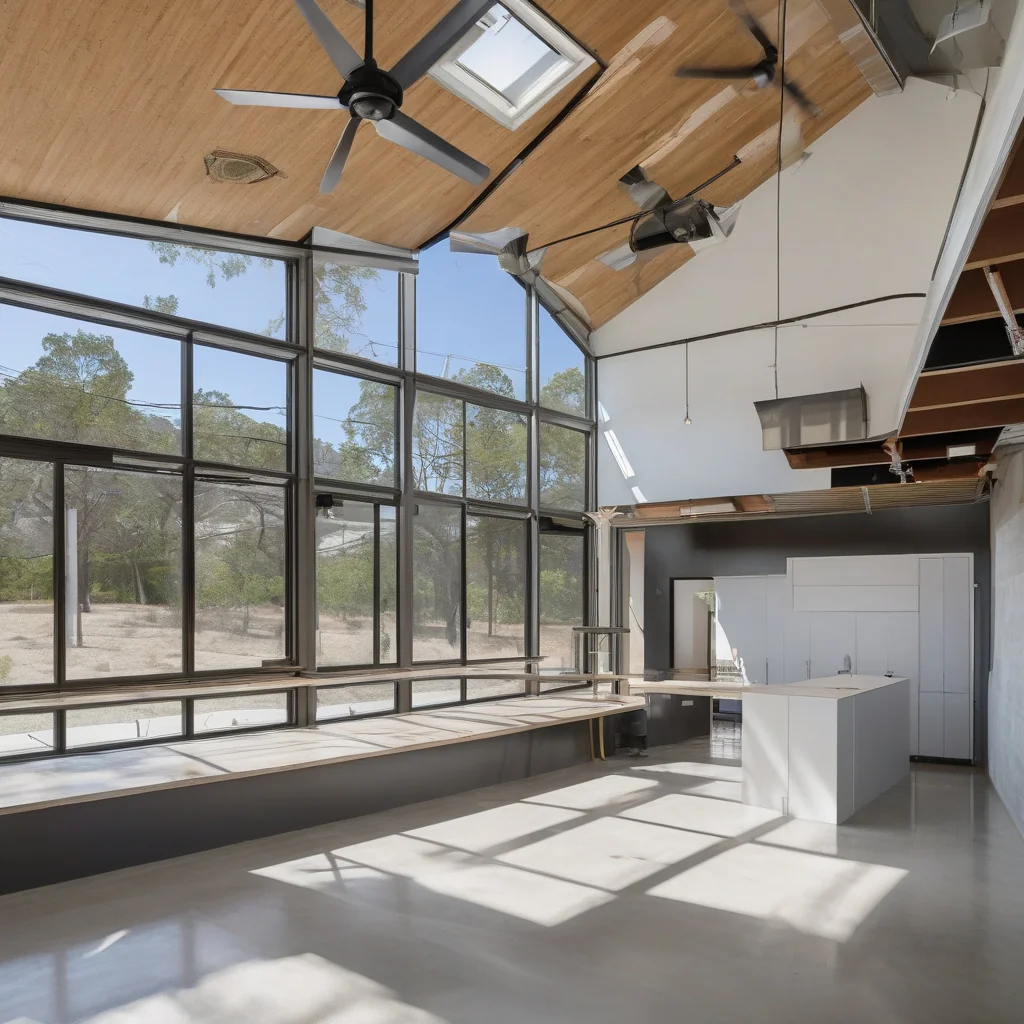

Place Windows for Daylight Without Creating Overheating
Window design should respond to orientation, nearby buildings, trees, roof overhangs, views, privacy, and the addition’s use. The same large opening can perform very differently on a shaded side of the house than on a west-facing wall exposed to strong afternoon sun.
More glass increases daylight but also affects heat gain, heat loss, glare, comfort near the window, and HVAC sizing. A smaller opening located deeper within the room’s sightline may distribute light more effectively than an oversized window concentrated on one wall.
Exterior shading usually blocks solar heat before it reaches the glass. Fixed overhangs, pergolas, exterior shades, shutters, and carefully located planting can be coordinated with seasonal sun angles, although each option affects views, daylight, maintenance, and architecture differently.
Window performance includes the glass, frame, spacers, weather seals, installation, flashing, and surrounding insulation. Compare high-performance windows for additions using project-specific energy values and installation requirements rather than relying on terms such as double-pane or energy-efficient alone.
Practical note: A large window can reduce daytime lighting while increasing cooling demand and glare; the better design is the opening that supplies useful daylight without making the occupied zone uncomfortable.
Use the Roof to Control Heat and Protect the Addition
The roof often receives the greatest solar exposure, making its insulation, color, ventilation strategy where applicable, waterproofing, and penetrations important to both comfort and durability. The correct assembly depends on whether the addition uses a vented attic, compact roof, low-slope roof, cathedral ceiling, or another configuration.
Reflective roofing can reduce roof-surface temperatures compared with darker materials under similar conditions. The effect inside the addition also depends on insulation, air sealing, roof geometry, shading, ceiling height, and HVAC operation.
Roof overhangs may provide useful wall and window shading while protecting openings from direct rainfall. Their dimensions should follow the sun exposure and architecture instead of being added uniformly to every side.
Skylights can improve daylight in deep rooms but introduce additional solar exposure, heat transfer, waterproofing details, and glare. Their size and location should be evaluated in the energy design rather than added after the roof framing is complete.
Coordinate energy-efficient roofing upgrades with insulation, drainage, solar planning, roof penetrations, and applicable cool-roof requirements before choosing a finish material.
Verify Before the Addition Is Insulated
- Confirm the air barrier is continuous at roof, wall, floor, and old-to-new transitions.
- Check insulation depth, fit, and coverage around framing and utilities.
- Inspect window and door flashing before interior finishes conceal openings.
- Seal approved penetrations without blocking required ventilation or drainage paths.
- Document concealed work for energy verification, maintenance, and future remodeling.
Energy-Efficient Addition Strategies Compared
The table focuses on decisions that reduce loads or improve control. Exact products and performance levels should follow the project’s energy documentation, adopted requirements, climate zone, and existing building conditions.
| Design strategy | Main performance benefit | What to verify |
|---|---|---|
| Compact addition footprint | Reduces exterior enclosure area and complex intersections | Usable layout, daylight, furniture, structure, and connection to existing rooms |
| Continuous insulation | Limits heat flow and local hot or cold surfaces | Thermal bridges, compression, gaps, framing transitions, and assembly compatibility |
| Detailed air sealing | Reduces uncontrolled drafts and air-carried heat or pollutants | Penetrations, framing joints, windows, doors, chases, and old-to-new connections |
| High-performance glazing | Improves solar and conductive heat control while admitting daylight | Orientation, area, shading, frame, installation, and project energy values |
| Exterior solar shading | Blocks direct sun before it reaches glass and interior surfaces | Seasonal sun, views, wind, drainage, maintenance, and architectural fit |
| Right-sized heat-pump system | Provides controlled heating and cooling for calculated loads | Load calculation, zoning, duct or refrigerant routing, controls, and commissioning |
| Mechanical ventilation | Supplies planned outdoor air in a tighter enclosure | System type, airflow, filtration, controls, exhaust interaction, and verification |
What Affects the Cost of an Energy-Efficient Addition?
Efficiency measures are most economical when integrated before drawings, structural systems, and product orders are finalized. Retrofitting exterior shading, rerouting ducts, or correcting missing air barriers after finishes are installed generally costs more than coordinating those details during design.
- Addition size, shape, ceiling height, roof geometry, and exterior surface area.
- Existing wall, roof, foundation, electrical, plumbing, and HVAC conditions.
- Insulation system, air-sealing complexity, and access to transitions.
- Window and door area, orientation, frame type, glazing, and shading.
- HVAC equipment, ductwork, zoning, ventilation, controls, and commissioning.
- Roofing, reflective materials, waterproofing, skylights, and solar readiness.
- Energy modeling, documentation, field verification, permits, and corrective work.
Compare options by installed performance and project interaction rather than product price alone. An expensive window placed without shading or an efficient HVAC unit connected to leaky ducts may provide less benefit than better coordinated, less visually prominent improvements.
Size HVAC and Ventilation for the New Enclosure
The existing heating and cooling system should not be extended into the addition without checking its capacity, distribution, controls, and condition. New floor area, glazing, orientation, insulation, occupancy, and ceiling height change the loads and may expose limitations in the original equipment.
A dedicated heat-pump system or separate zone may provide more direct control when the addition has different sun exposure or operating hours from the main house. However, equipment should be sized from calculated loads. Oversized systems can cycle frequently and may produce uneven comfort or poor humidity control.
Ducts passing through unconditioned areas require careful sealing and insulation under applicable requirements. Long, compressed, sharply bent, or poorly supported flexible ducts can restrict airflow even when the equipment itself is efficient.
A tighter addition also needs planned ventilation. Operable windows are useful for occupant-controlled airflow but may not replace required mechanical ventilation. Kitchen and bathroom exhaust, whole-building ventilation, range hoods, fireplaces, and pressure effects should be reviewed as one system.
The 2025 California Energy Code applies to permit applications submitted on or after January 1, 2026 and includes requirements affecting additions, HVAC, and ventilation. Project-specific California energy code ventilation upgrades should be confirmed through the compliance documents and local review process.
Common Energy-Efficiency Mistakes in Home Additions
The first mistake is adding large amounts of glass without studying orientation. Floor-to-ceiling windows can provide views and daylight while making perimeter seating uncomfortable and increasing cooling demand when exposed to direct afternoon sun.
Another error is treating air sealing as a can of foam applied at the end of framing. The air-control layer must remain continuous behind tubs, soffits, dropped ceilings, built-ins, roof intersections, and utility chases that may become inaccessible later.
Extending existing ducts without a load and airflow review can leave both the addition and original rooms uncomfortable. Added branches may reduce delivery elsewhere, while long routes through attics can increase losses and balancing problems.
Specifying efficient windows but installing them without continuous flashing, insulation, and air sealing undermines performance and may create water or condensation problems. Product ratings do not account for installation defects.
Finally, selecting every green feature independently can produce conflicts. Skylights affect roof insulation and cooling loads, exterior shades influence daylight, photovoltaic layouts affect roof access, and mechanical ventilation interacts with exhaust equipment. These systems need one coordinated design.
Use Lighting, Materials, and Controls to Reduce Ongoing Demand
Daylight should illuminate useful surfaces rather than create glare on screens or intense contrast between windows and the rest of the room. Window height, interior reflectance, exterior shading, and room depth all affect how far daylight reaches.
High-efficacy lighting and separate controls allow homeowners to illuminate the task area being used instead of the entire addition. Occupancy sensors, dimming, and daylight-responsive controls may be appropriate depending on room use and applicable requirements.
Interior materials influence comfort but should not be credited with performance they cannot provide. Concrete, masonry, and tile can contribute thermal mass in a design that accounts for solar exposure and nighttime conditions, but they do not replace insulation, shading, or HVAC.
Material durability also matters. Finishes that tolerate strong daylight, temperature changes, and the room’s actual use can reduce premature replacement. Low-emitting products may support indoor air-quality goals when selected and installed under applicable specifications.
Climate adaptation should extend beyond annual energy calculations. The guide to climate-resilient addition design explains how shading, drainage, material exposure, ventilation, and backup planning can influence comfort during heat and weather events.
Plan Compliance and Quality Checks Before Construction
California’s Energy Code applies to newly constructed buildings, additions, and alterations. Permit applications submitted on or after January 1, 2026 are generally subject to the 2025 Energy Code, while the final requirements depend on project scope, building type, climate zone, local amendments, and the selected prescriptive or performance compliance path.
Energy documentation may address insulation, fenestration, roofing, HVAC, water heating, ventilation, lighting, and verification requirements. The approved values should match architectural drawings, mechanical plans, product orders, and field installation.
Product substitutions should be reviewed before purchase because changing a window, insulation system, HVAC unit, or roofing product can affect documented compliance. A product described generally as efficient is not necessarily equivalent to the one used in the calculations.
Field checks should occur before concealment. Inspect insulation fit, air sealing, duct installation, window flashing, equipment settings, ventilation airflow, and other required measures while correction remains practical.
Homeowners should retain energy forms, product data, commissioning records, warranties, photographs of concealed work, and operating instructions. This documentation supports maintenance and helps future contractors understand how the addition was designed to perform.
- An efficient addition starts with a compact air-sealed and insulated enclosure.
- Window orientation and exterior shading control daylight and solar heat together.
- Do not extend existing HVAC without load and airflow calculations.
- Envelope gaps, moisture, and ventilation conflicts require professional assessment.
- Coordinate energy documents, products, and field inspections before finishes are installed.
Frequently Asked Questions
What is the most important energy upgrade for a home addition?
The highest priority is a continuous enclosure that combines correctly installed insulation with detailed air sealing. Windows, roofing, and HVAC cannot perform efficiently when gaps remain at framing intersections, penetrations, or the connection to the existing house. The exact insulation and air-control strategy depends on the wall, roof, floor, climate zone, and project compliance path, so it should be designed before construction begins.
Which insulation is best for a Southern California addition?
There is no universal best insulation. Fibrous batts, blown products, rigid boards, insulated sheathing, and spray-applied materials can all work when compatible with the assembly and installed correctly. Compare thermal performance, air-control strategy, moisture behavior, fire requirements, available cavity depth, access, environmental priorities, and quality control. A high-rated product with gaps or compression may underperform a carefully installed continuous system.
Do larger windows make an addition less energy-efficient?
Larger windows increase daylight and views but can also increase conductive heat transfer, solar gain, glare, and perimeter discomfort. Their effect depends on orientation, glazing values, frame, exterior shading, nearby buildings, landscaping, and room use. A project-specific energy analysis can determine whether the proposed glass area is appropriate or should be reduced, redistributed, or protected with overhangs and exterior shading.
Can the existing HVAC system serve a new room addition?
It may be possible when the existing equipment, ducts, controls, and electrical service can support the calculated load without reducing comfort in the original house. Adding a duct branch without analysis may create weak airflow or imbalance elsewhere. The contractor should evaluate equipment capacity, duct condition, zoning, return-air paths, ventilation, and the addition’s orientation before choosing between extending the system and installing dedicated equipment.
Does an energy-efficient addition need mechanical ventilation?
Mechanical ventilation requirements depend on the project and how the addition affects the building. A tighter enclosure reduces uncontrolled air leakage, making planned outdoor-air delivery and exhaust coordination more important. Operable windows may support natural ventilation but do not automatically replace required mechanical systems. The design should coordinate whole-building ventilation, kitchen and bathroom exhaust, filtration, controls, and applicable California Energy Code provisions.
Is a cool roof worthwhile on a home addition?
A reflective roof can reduce roof-surface temperature under sunny conditions and may support energy-code or comfort goals. The indoor benefit varies with roof type, insulation, air sealing, ceiling configuration, HVAC, and shade. Confirm whether cool-roof requirements apply to the project and compare products by verified performance, waterproofing suitability, durability, maintenance, and compatibility with future solar equipment rather than reflectance alone.
Do California energy requirements apply to home additions?
Yes. California’s Building Energy Efficiency Standards apply to additions, although the exact requirements vary with permit date, building type, climate zone, size, systems, and compliance method. Permit applications submitted on or after January 1, 2026 are generally governed by the 2025 Energy Code. The energy consultant and local authority should confirm the forms, performance values, verification, and any local amendments for the specific project.
How can energy-efficiency work be checked during construction?
Compare installed products with the approved energy documents and inspect critical work before concealment. Check insulation coverage, air-sealing continuity, window and door installation, duct sealing and support, ventilation components, equipment specifications, controls, and roofing details. Required field verification depends on the project. Photographs, test results, installation certificates, commissioning records, and final compliance documents should be retained with the home’s maintenance records.
