Outdoor Water Management
Effective deck drainage solutions combine properly spaced deck boards, a planned drainage path, flashing at building connections, and gutters or under-deck channels where needed. The goal is not merely to move rain through the surface, but to keep water from collecting against joists, ledgers, walls, posts, and occupied areas below.
An open wood or composite deck normally sheds water through gaps between boards, while a waterproof balcony or roof deck must direct water across a continuous surface toward approved drains or edges. Treating these assemblies as interchangeable can trap moisture, overload the wrong components, or conceal leaks until framing and finishes are damaged.
Drainage essentials: First identify whether the deck is an open-draining structure, an elevated deck with a dry area below, or a waterproof walking surface over occupied space. Follow water from the deck surface to its final discharge point and check every transition along that route. Flashing, slope, outlets, gutters, and maintenance access must function as one system. Persistent ponding, soft framing, interior staining, or failed waterproofing calls for professional assessment rather than another surface coating.
Which Deck Drainage Solution Prevents Water Damage?
The correct solution depends on how the deck is built and what lies beneath it. An open deck over soil may need unobstructed board gaps, sound flashing, controlled runoff, and grading that carries water away. An elevated deck over a patio may benefit from a purpose-built under-deck collection system. A balcony over an interior room requires a continuous waterproof assembly designed as part of the building envelope.
No single membrane, gutter, or sealant fixes every drainage problem. Water must move through a complete route: off the walking surface, past penetrations and wall transitions, into a channel or outlet, and away from the structure. A defect at any point can redirect moisture into framing or finished areas.
Planning deck repair and drainage improvements should therefore begin with an inspection of the deck type, framing condition, ledger connection, surface slope, discharge location, and evidence of previous repairs. Cosmetic staining alone may be minor, but staining combined with softness, movement, or recurring leaks may indicate concealed damage.
Southern California’s dry periods can make a drainage defect easy to overlook. When rain returns, clogged gaps, debris-filled outlets, aging sealant, and poorly directed downspouts may concentrate a large amount of runoff at vulnerable joints.
Open Deck Drainage
Water passes between spaced boards, then falls to soil, paving, or landscaping that must carry it away without wetting posts or foundations.
Under-Deck Collection
Troughs, panels, or ceiling-mounted channels collect water beneath an elevated deck and direct it toward a gutter and controlled outlet.
Waterproof Walking Surface
A continuous membrane, protected transitions, and planned drains or scuppers keep water from entering occupied or enclosed space below.

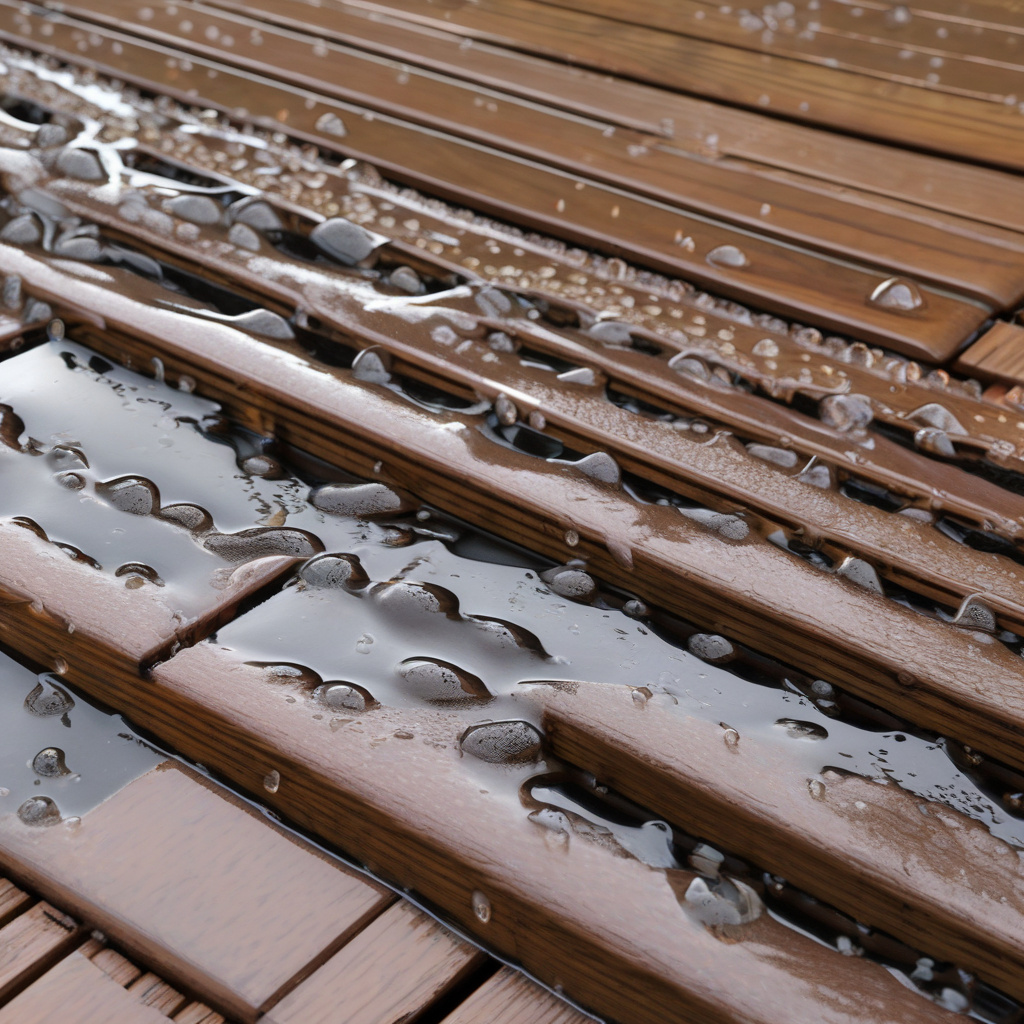

How Open Decks Should Move Rainwater
Open decks rely on drainage gaps between boards. Those gaps must remain free of leaves, dirt, sealant buildup, swollen debris, and objects that bridge across adjoining boards. Water that cannot pass through may remain on the surface or travel toward the house instead.
Below the boards, framing should not create accidental pockets that hold water. Joists, beams, blocking, fasteners, and post connections all experience repeated wetting, so the assembly needs ventilation and a path for drying. Covering the underside without understanding how moisture escapes can create a concealed damp cavity.
At the perimeter, runoff should not drop directly onto unprotected doors, lower walls, stairs, electrical equipment, or concentrated areas of soil. Splashback can stain stucco, wet siding, erode landscaping, and direct moisture toward the foundation.
Board spacing is not a substitute for ledger flashing. Where a deck attaches to a house, the wall-to-deck transition must keep water from entering behind the exterior finish or at structural connections. Surface caulk alone is not a dependable replacement for properly integrated flashing.
Practical note: Deck-board gaps drain the walking surface, but they do not waterproof the framing or the wall connection. If the space below must stay dry, a separate collection or waterproofing system is required.
Under-Deck Systems for Elevated Decks
An under-deck system collects water that passes through the decking and routes it to gutters or downspouts. It can make the area below more usable, but its placement changes which parts of the framing remain exposed to water.
Over-joist systems are installed before the decking and intercept water before it reaches much of the framing. They require careful integration at the ledger, beam, joist bays, downspouts, penetrations, and deck fasteners. Because the components become concealed, installation errors may be difficult to correct after boards are secured.
Below-joist systems are attached beneath an existing deck. They may be practical for retrofits, but the joists and connections above still receive water before it reaches the collection panels. The enclosed area also needs enough access and ventilation to inspect framing and clear debris.
Neither arrangement should discharge water beside posts or against the house. Gutters and outlets need a clear destination that does not create erosion, foundation moisture, or standing water on an adjacent patio.
Over-Joist System
This approach can protect more of the deck substructure and create a dry zone below, but it is most practical during construction or major resurfacing.
Below-Joist System
This option can be added beneath some existing decks, although the framing above remains exposed and the new ceiling must not hide deterioration or block drying.
Deck Drainage Options Compared
The best-fit system depends on the assembly rather than appearance alone. The table separates common solutions by where they collect water and the limitation that must be checked before installation.
| Drainage option | Best fit | Main limitation to verify |
|---|---|---|
| Open board gaps | Uncovered decks where water may fall freely below | The area beneath must drain and dry without harming walls or foundations |
| Over-joist trough system | New or rebuilt elevated decks with a planned dry area below | Ledger flashing, penetrations, outlet capacity, and concealed seams require precise coordination |
| Below-joist panel system | Existing elevated decks where framing can remain exposed to rainfall | Panels must not conceal rot, restrict inspection, or trap moisture around framing |
| Surface membrane | Balconies and walking decks that must protect enclosed space | Transitions, drains, edges, doors, and penetrations must form one continuous waterproof assembly |
| Perimeter gutter | Deck edges or under-deck systems with concentrated runoff | The gutter needs adequate fall, cleaning access, secure attachment, and a safe discharge point |
| Channel or trench drain | Deck-to-patio transitions, door areas, and hardscape collection points | The drain only works when surrounding surfaces direct water toward it and the outlet remains clear |
Waterproof Decks Above Rooms and Finished Patios
A deck above an interior room is not simply an outdoor platform with closer board spacing. It functions as part of the roof and wall enclosure. The walking surface, waterproof membrane, drainage plane, edge metal, wall transitions, door thresholds, drains, scuppers, and penetrations must work together.
For these assemblies, waterproof systems below elevated decks should be selected according to the supporting substrate, intended traffic, finish layer, drainage design, and manufacturer requirements. Mixing unrelated coatings, drains, and flashing details can create incompatible seams.
Water should not remain trapped around door thresholds, railing posts, equipment curbs, or surface penetrations. These locations interrupt the membrane and require details suited to the specific system. Driving new fasteners through an existing waterproof surface can create leak paths even when the penetration appears small.
A finish coating can hide cracks and discoloration without restoring a failed drainage assembly. Interior ceiling stains, swollen trim, recurring bubbles, loose tile, soft sheathing, or moisture near door openings may indicate that inspection below the visible finish is necessary.
Slope, Drains, Gutters, and Discharge Points
Drainage begins with continuous fall toward a functioning outlet. A drain installed at the wrong elevation cannot remove water from a low area elsewhere, and adding another surface layer may worsen the problem by changing thresholds or creating new depressions.
Small isolated puddles and persistent ponding are not the same condition. Water that remains because of debris may be resolved through cleaning, while repeated standing water in the same location can indicate an inadequate slope, a settled substrate, a blocked outlet, or deformation within the assembly.
The same diagnostic principles used for standing water and drainage solutions apply to waterproof walking decks: locate the low area, identify the intended outlet, check whether the drainage path is continuous, and determine whether the surface or supporting structure has changed.

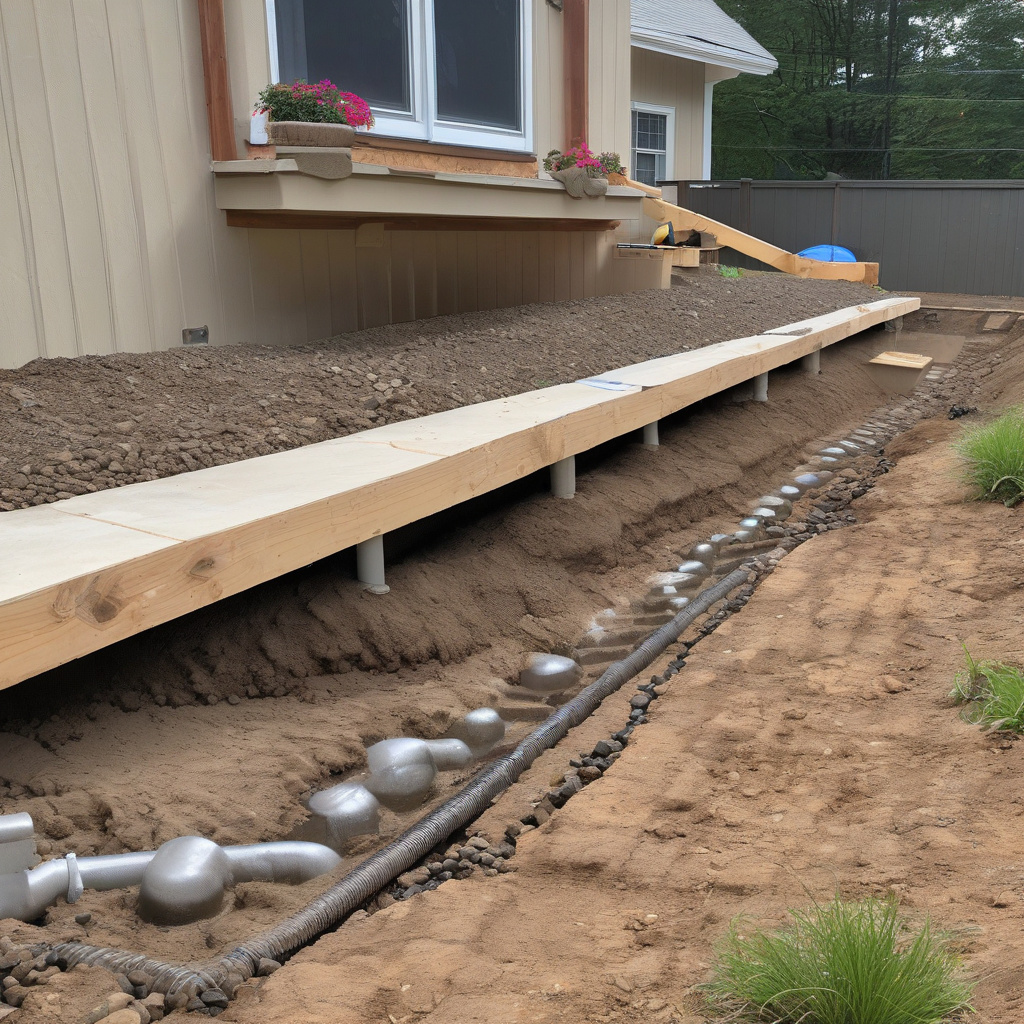

Downspouts and drain lines must terminate where runoff can continue moving safely. Releasing concentrated water onto a lower wood landing, beside a retaining wall, or into poorly drained soil merely transfers the moisture problem to another part of the property.
What Affects the Cost of Deck Drainage Work?
Cost depends on whether the project is routine maintenance, a retrofit beneath an intact deck, a full resurfacing project, or reconstruction after concealed water damage. The same visible stain can lead to very different scopes once decking, fascia, ceilings, or waterproof finishes are inspected.
Access also affects the work. Elevated decks, tight side yards, finished rooms below, integrated railings, attached stairs, and limited locations for downspouts can require more protection and coordination than an open platform over landscaping.
- Deck size, height, shape, and number of drainage zones
- Condition of joists, beams, ledger, sheathing, and wall transitions
- Removal and reinstallation of decking, railings, ceilings, or surface finishes
- Type of membrane, trough, gutter, drain, flashing, and compatible accessories
- Outlet routing, excavation, hardscape changes, access, and permit-related work
Deck Drainage Inspection and Maintenance
Inspect the system before seasonal rain and after storms that carry leaves, needles, seed pods, or windblown debris. Clear accessible board gaps, drain covers, gutters, scuppers, and downspout openings without damaging membranes or flashing.
Look beneath open decks for repeated dark staining, corrosion, cracked members, fungal growth, soft wood, displaced connectors, or water marks concentrated at the ledger. Surface appearance cannot confirm structural capacity, but changes in texture, movement, or connection condition justify closer evaluation.
Waterproof balcony surfaces should be reviewed for cracks, blisters, open seams, failed perimeter sealant, damaged edge details, and ponding near doors or drains. Follow system-specific maintenance requirements and avoid using tools or cleaning methods that can puncture or abrade the membrane.
Regular maintenance for balcony roof surfaces is especially important when planters, rugs, furniture, or storage conceal drains and prevent the walking surface from drying.
What to Check Before the Rainy Season
- Remove debris from deck-board gaps, drain covers, scuppers, and gutters
- Trace each outlet to confirm water discharges away from the structure
- Inspect ledger flashing, wall transitions, railing penetrations, and door thresholds
- Look for recurring stains, soft wood, loose finishes, corrosion, or movement
- Document ponding locations and repairs before applying any new coating
Waterproofing Mistakes That Lead to Deck Damage
One common mistake is sealing the visible surface while leaving failed edges, penetrations, drains, or wall transitions untouched. Water often enters at changes in material rather than through the middle of an intact field coating.
Another error is covering the underside of an elevated deck before confirming that the framing is dry and sound. A finished ceiling can hide active leaks, restrict inspection, and delay discovery of deterioration around joists or the ledger.
Incorrect discharge is equally damaging. A gutter may keep the patio below dry while directing all runoff toward the foundation, a post base, or an eroding slope. Every drainage component needs a verified endpoint.
Applying incompatible sealants or coatings can also interfere with adhesion and future repairs. Review the system manufacturer’s requirements and avoid the broader waterproofing mistakes that cause damage, particularly unplanned penetrations and repairs made over damp substrates.
When Deck Drainage Requires Professional Assessment
A homeowner can safely observe water flow from ground level, clear readily accessible debris, photograph stains, and note where ponding occurs. Avoid opening structural connections, walking on questionable framing, removing guard components, or puncturing waterproof surfaces to investigate a leak.
Professional assessment is warranted when wood feels soft, the deck moves unexpectedly, fasteners or connectors show significant corrosion, the ledger area remains wet, interior finishes are stained, or water repeatedly appears below a waterproof deck. These signs may involve concealed framing or building-envelope conditions that cannot be judged from the surface.
A contractor should also evaluate drainage changes that require reframing, altering slope, replacing sheathing, modifying a wall transition, adding drains, or routing concentrated runoff through the property. Permit and inspection requirements can vary with the structural and waterproofing scope.
Before approving repairs, request a written description of where water enters, how it will be collected, where it will discharge, which materials form the continuous waterproof path, and how the system can be cleaned and inspected after completion.
- Deck drainage must move water from the surface to a safe discharge point.
- Choose the system according to what lies beneath the deck.
- Do not cover framing or ponding with an unverified surface coating.
- Soft wood, movement, recurring leaks, or interior stains require professional inspection.
- Trace and document the complete runoff path before selecting a repair.
Frequently Asked Questions
What is the best drainage system for an elevated deck?
An over-joist collection system is often suited to a new or rebuilt elevated deck when the framing and area below should remain protected from rainfall. A below-joist system may be considered for some existing decks, but the framing still gets wet. The final selection should account for the ledger, joist layout, outlets, ventilation, inspection access, and intended use of the space below.
How do you improve drainage under an existing deck?
Begin by clearing debris, checking where runoff lands, and looking for wet soil, erosion, blocked gaps, or staining on framing. Depending on the assembly, improvements may include grading, a controlled gutter outlet, an under-deck panel system, or reconstruction of failed drainage details. Any ceiling or collection system should be installed only after confirming that existing joists and connections are sound and able to dry.
Can deck boards be sealed to make the deck waterproof?
Ordinary spaced deck boards are not converted into a dependable waterproof roof by coating the top or filling every gap. Movement, fasteners, joints, edges, and wall connections remain potential water paths, while blocked gaps can create ponding. Keeping space below dry requires a designed collection system beneath the boards or a continuous traffic-rated waterproof assembly appropriate for the supporting structure.
Why does water collect in one area of a deck?
Localized water can result from debris, a blocked outlet, insufficient slope, a settled substrate, a low drain, surface deformation, or a threshold that interrupts runoff. The cause should be identified before adding another coating or patch. A new layer may preserve the same depression or redirect water toward a wall, railing penetration, or door instead of correcting the drainage path.
Does an under-deck ceiling protect the deck framing?
A ceiling-mounted system installed below the joists can keep the patio beneath drier, but water still passes through the deck boards and reaches the framing first. Its effectiveness therefore depends on ventilation, drainage, access, and the condition of the wood and connectors. An over-joist system intercepts water earlier, although it requires careful installation before or during deck resurfacing.
How often should deck drains and gutters be cleaned?
Cleaning frequency should reflect nearby trees, wind exposure, system design, and manufacturer guidance rather than a fixed universal interval. Inspect accessible drains, scuppers, channels, and gutters before seasonal rain and after storms that deposit debris. A system beneath removable furniture or planters may need more frequent observation because a small blockage can remain hidden until water backs up.
What signs suggest deck water damage is structural?
Soft or crumbling wood, unusual movement, sagging, splitting near connections, displaced hardware, significant corrosion, and persistent moisture around the ledger may indicate more than surface staining. Interior leaks below a deck also deserve prompt investigation. Structural capacity cannot be confirmed from appearance alone, so use should be limited when movement or deterioration is observed until the assembly is professionally assessed.
Can a deck drainage system discharge into the yard?
Runoff may discharge to an appropriate landscaped or drainage area when site conditions and local requirements allow it, but concentrated water should not be released beside foundations, post bases, retaining walls, unstable slopes, or neighboring property. The outlet location must account for erosion, soil absorption, hardscape flow, and the volume collected from the deck. Property-specific drainage planning may require professional review.
